Limbs | JACKALOPE Zircon - Foam - ILF - 24-44 lbs

Item number: L167+WAJLZF

Category: Limbs

129,99 €

including 16% VAT., plus shipping (#custom.shippingPaket#)

There are variations of this item. Please select the variation you wish.

Description

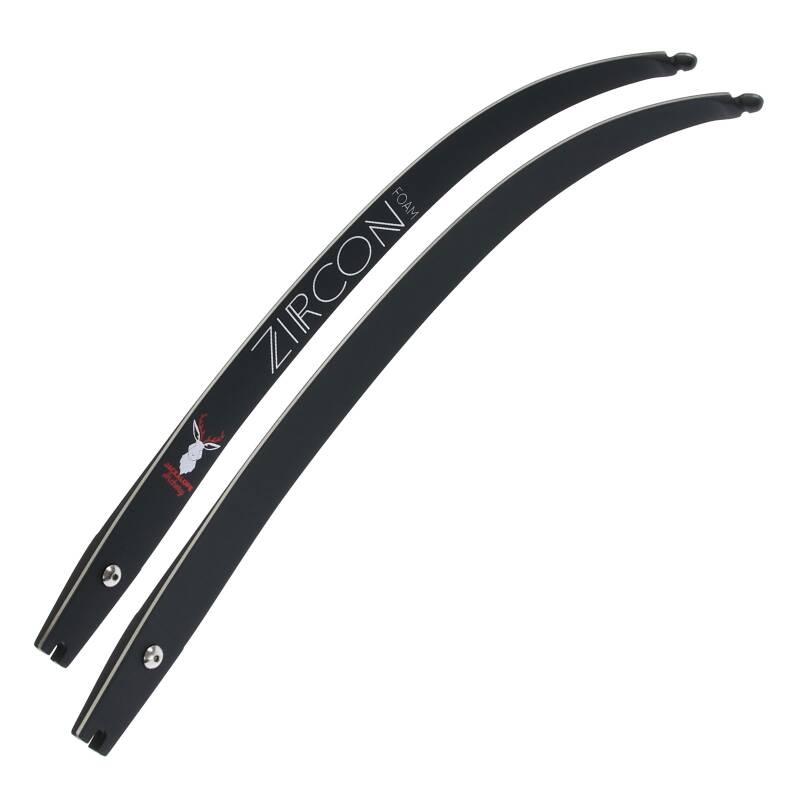

Limbs | JACKALOPE Zircon - Foam - 24-44 lbs

You want to take your Zircon to the next level? With the new Foam limb you can do just that. Lightweight materials and a high level of expertise in arm design have been combined to create a limb that has an improved extension curve at the same high speed as the regular Zircon limbs. The "secret" is the foam core, which ensures a softer extension and a significantly better torsional stiffness. The new Foam limbs therefore score enormously in the comfort category. This makes the Foam Limbs perfect limbs for both advanced and beginners who appreciate a little more comfort. The classic matt black finish of the limbs is suitable for both sporty risers and traditional wooden grips. The discreet print visually rounds off the package.

JACKALOPE ARCHERY - Good thinking ahead!

JACKALOPE ARCHERY proves that convincing things can always be made better with three newly developed ILF limb models. The Zircon ILF limbs have been known for their reliability and great performance. Consistent further development and the constant transfer of knowledge from the construction of the Bloodstone and Onyx competition limbs have now resulted in new limbs suitable for the Zircon and all other ILF risers from JACKALOPE ARCHERY. And, of course, also for all other ILF risers on the market. After all, the "ILF" in the name of the limbs stands for the International Limb Fitting System - in short: ILF System - which identifies them as plug-in limbs and makes them universal. With the ILF system, the limb is not screwed to the riser, but simply inserted into the corresponding brackets. The holders are standardised and ensure that the limb can be used with all ILF risers.



Technical Specs:



Draw weight

Material

Tips

System

Length
(Bow length
with 25" riser)

JACKALOPE
Zircon
- Foam -
Limbs

24-44 lbs

Foam
Black glass laminate

Micarta
(Fast flight suitable)

ILF-System

Medium (68")
Long (70")












Delivered items:
1 pair








Characteristics
Screw on or ILF Limbs:
Limbs Material:
Hints on draw weight & bow length


Labelling of the limbs
The limbs of a bow are always marked with a label indicating not only the draw weight of the limbs but also the length of the handle or the length of the bow to which the draw weight refers. This label can look like the following:

25# @ 19" or
19H 25# 62" or
25# @ 62" or also
62" / 25 lbs

If the length of the handle is not specified, a 25" handle is usually the basis for the draw weight specification. In the case of special bows, where the limbs are only suitable for the respective handle, the draw weight specification is naturally related to the corresponding handle.

Many limbs are also available in three various lengths - mostly called short, medium and long - allowing you to reach 66, 68 and 70" despite having the same handle.

Conversion of draw weight and bow length
Many limbs have universal mounting options, enabling them to be used on various handles of one manufacturer or multiple manufacturers. It should be noted, however, that the use of a shorter or longer handle results in a change in the bow length and the draw weight.

As a rule of thumb one can remember the following:

-2" handle length = -2" bow length & +2 lbs draw weight
or
+2" handle length = +2" bow length & -2 lbs draw weight

i.e.: If the handle is 2" shorter than the length to which the draw weight refers on the limbs, the bow is 2" shorter and the draw weight increases by 2 lbs.

Example table for limbs with the draw weight specification for a 25" handle (e.g. 20# @ 25") and a bow length of 68". The table is incomplete and can be continued at will depending on the handle length.



Draw weight in lbs
(# corresponds to lbs)

Length of Handle

Bow length

indication
on the
limbs

18

20

22

24

26

28

30

32

-

-

-

@ 23"

Short
64"

16

18

20

22

24

26

28

30

-

-

-

@ 25"

Short
66"

14

16

18

20

22

24

26

28

-

-

-

@ 27"

Short
68"



18

20

22

24

26

28

30

32

34

36

38

@ 23"

Medium
66"

16

18

20

22

24

26

28

30

32

34

36

@ 25"

Medium
68"

14

16

18

20

22

24

26

28

30

32

34

@ 27"

Medium
70"



-

20

22

24

26

28

30

32

34

36

38

@ 23"

Long
68"

-

18

20

22

24

26

28

30

32

34

36

@ 25"

Long
70"

-

16

18

20

22

24

26

28

30

32

34

@ 27"

Long
72"
